Which packet is not an OSPF packet type?
William Brown
Which packet is NOT an OSPF packet type? Explanation: LSU is the Link State Update packet, LSR is the Link State Request packet and DBD is the Database Descriptor packet in OSPF. Query packet is NOT an OSPF packet type.

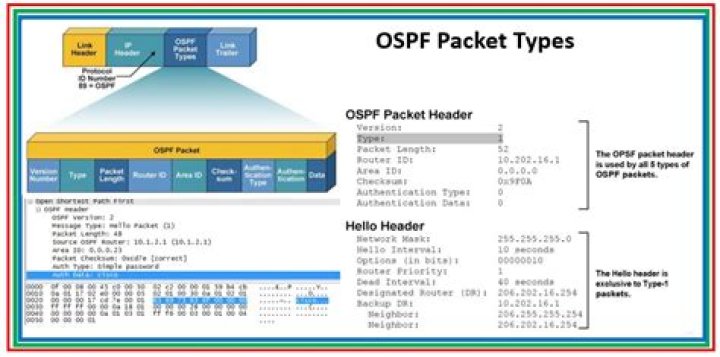

In respect to this, what are the OSPF packet types?
1- Hello packet
- Hello packet.
- Database Descriptor packet.
- Link State Request packet.
- Link State Update packet.
- Link State Acknowledgment packet.
Also, what does OSPF Hello packet contains? Hello packets consist of the OSPF header plus the following fields: Network mask—(OSPFv2 only) Network mask associated with the interface. Hello interval—How often the router sends hello packets. All routers on a shared network must use the same hello interval.
Accordingly, how many types of OSPF packets are available?
5 Types
What are the functions of hello packets in OSPF?
OSPF hello packets are packets that an OSPF process sends to its OSPF neighbors to maintain connectivity with those neighbors. The hello packets are sent at a configurable interval (in seconds). The defaults are 10 seconds for an Ethernet link and 30 seconds for a non broadcast link.
Related Question Answers
Which layer is OSPF?
network layerDoes OSPF use TCP or UDP?
OSPF messages ride directly inside of IP packets as IP protocol number 89. Because OSPF does not use UDP or TCP, the OSPF protocol is fairly elaborate and must reproduce many of the features of a transport protocol to move OSPF messages between routers.What is a hello packet?
In the Open Shortest Path First (OSPF) communications protocol - which enables network routers to share information with each other, a HELLO packet is a special packet (message) that is sent out periodically from a router to establish and confirm network adjacency relationships.How does OSPF choose DR and BDR?
Two rules are used to elect a DR and BDR: router with the highest OSPF priority will become a DR. if there is a tie, a router with the highest router ID wins the election. The router with the second highest OSPF priority or router ID will become a BDR.How many types of OSPF areas are there?
Standard areas can contain LSAs of type 1, 2, 3, 4, and 5, and may contain an ASBR. The backbone is considered a standard area. Stub areas can contain type 1, 2, and 3 LSAs. A default route is substituted for external routes.What are the OSPF States?
The states are Down, Attempt, Init, 2-Way, Exstart, Exchange, Loading, and Full.Is OSPF multicast?
OSPF uses two IP multicast addresses on broadcast and point-to-point networks: 225.0. 0.5 for all OSPF routers and 224.0. 0.6 for all DR/BDR (designated router/backup designated router) routers. Using IP multicast addresses is more efficient than using broadcast addresses.Why areas are used in OSPF?
In OSPF, a single autonomous system (AS) can be divided into smaller groups called areas. This reduces the number of link-state advertisements (LSAs) and other OSPF overhead traffic sent on the network, and it reduces the size of the topology database that each router must maintain.How do I find my LSA type in OSPF?
Verification. By using the show ip ospf database we can look at the LSDB and we can see the type 1 router LSAs, type 2 network LSAs and the type 3 summary LSAs here.What are two characteristics of OSPF areas?
Characteristics of a Standard OSPF Area- Areas contain a group of contiguous hosts and networks.
- Routers have a per-area topological database and run the same SPF algorithm.
- Each area must be connected to the backbone area known as area 0.
- Virtual links can be used to connect to area 0 in emergencies.
How do I know if my OSPF neighbor is down?
You can use the show ip ospf neighbor command in order to determine the state of the OSPF neighbor or neighbors. The output of this command will most likely reveal one of these: nothing at all. state = down.How often does OSPF send hello packets?
every 10 secondsHow does OSPF work in networking?
OSPF is a routing protocol. Two routers speaking OSPF to each other exchange information about the routes they know about and the cost for them to get there. OSPF routers rely on cost to compute the shortest path through the network between themselves and a remote router or network destination.What is E bit in OSPF?
RFC3101 describes an OSPF area called not-so-stubby area (NSSA). The motivation behind NSSA is to allow OSPF Stub areas to carry External routes (routes learned using other routing protocols like RIP, EIGRP, BGP, etc). Stub areas are defined as areas that are not capable of importing routes external to OSPF. N-bit.What is the correct order of the operations of OSPF?
What is the correct order of the operations of OSPF? Explanation: OSPF first implements a hello protocol. Then it later on tries to establish synchronisation with database. Later on building of routing tables is done.What are the characteristics of OSPF?
OSPF Characteristics- Provides routing information to the IP section of the TCP/IP protocol suite, the most commonly used alternative to RIP.
- Sends updates to tables only, instead of entire tables, to routers.
- Is a more economical routing protocol than RIP over time because it involves less network traffic.
How does OSPF establish neighbor relations?
OSPF Operation OverviewEstablish neighbor adjacencies: OSPF-enabled routers must form adjacencies with their neighbor before they can share information with that neighbor. An OSPF-enabled router sends Hello packets out all OSPF-enabled interfaces to determine whether neighbors are present on those links.
What is the OSPF multicast address?
Notable IPv4 multicast addresses| IP multicast address | Description | Routable |
|---|---|---|
| 224.0.0.5 | The Open Shortest Path First (OSPF) All OSPF Routers address is used to send Hello packets to all OSPF routers on a network segment. | No |
